Koupit QXK2J224KTP s BYCHPS
Koupit se zárukou
QXK2J224KTP
- Part Number:
- QXK2J224KTP
- Výrobce:
- Nichicon
- Popis:

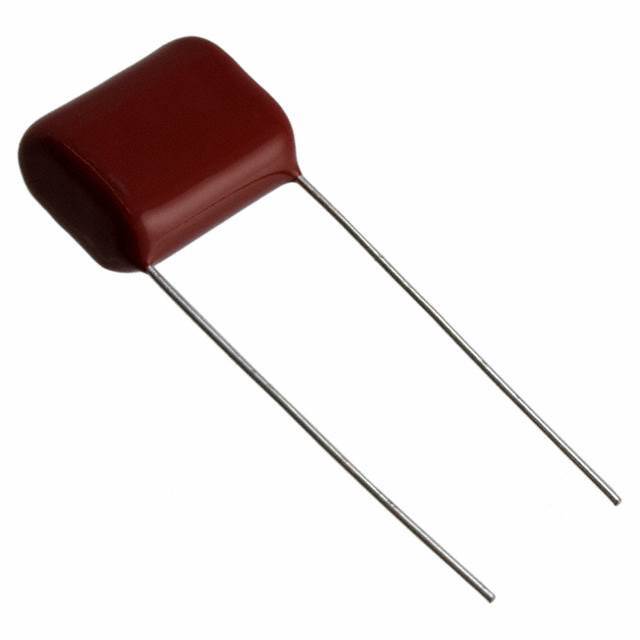

- CAP FILM 0.22UF 10% 630VDC RAD
- Stav volného vedení / RoHS:
- Bez olova / V souladu RoHS
- dostupné množství:
- 15665 Pieces
Úvod
BYCHIPS je distribuční odrůda pro QXK2J224KTP, máme zásoby pro okamžitou přepravu a také k dispozici pro dlouhodobé zásobování. Zašlete nám svůj plán nákupu QXK2J224KTP e-mailem vám poskytneme nejlepší cenu podle svého plánu.
Specifikace
| Napìtí - DC: | 630V |
|---|---|
| Napìtí - AC: | 250V |
| Tolerance: | ±10% |
| Ukončení: | PC Pins |
| Velikost / Rozměry: | 0.728" L x 0.378" W (18.50mm x 9.60mm) |
| Série: | QXK |
| Obal: | Bulk |
| Paket / krabice: | Radial |
| Ostatní jména: | 493-3551 |
| Provozní teplota: | -40°C ~ 105°C |
| Typ montáže: | Through Hole |
| Úroveň citlivosti na vlhkost (MSL): | 1 (Unlimited) |
| Výrobní standardní doba výroby: | 18 Weeks |
| Výrobní číslo výrobce: | QXK2J224KTP |
| Rozestup vývodù: | 0.591" (15.00mm) |
| Výška - Sedící (Max): | 0.642" (16.30mm) |
| Funkce: | - |
| Rozšířený popis: | 0.22µF ±10% Film Capacitor 250V 630V Polyester, Metallized Radial |
| ESR (Equivalent Resistance Series): | - |
| dielektrikum Materiál: | Polyester, Metallized |
| Popis: | CAP FILM 0.22UF 10% 630VDC RAD |
| kapacitní: | 0.22µF |
| Aplikace: | General Purpose |
| Email: | [email protected] |
