Koupit QXK2J153KTPTZH s BYCHPS
Koupit se zárukou

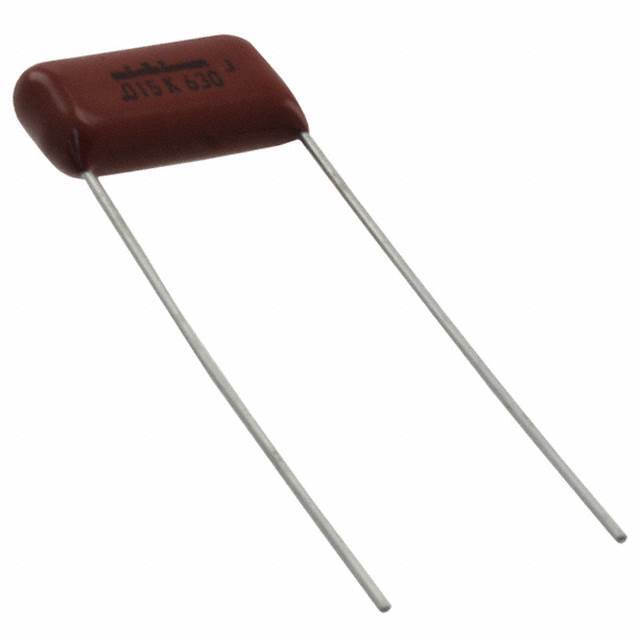

QXK2J153KTPTZH
- Part Number:
- QXK2J153KTPTZH
- Výrobce:
- Nichicon
- Popis:
- CAP FILM 0.015UF 10% 630VDC RAD
- Stav volného vedení / RoHS:
- Bez olova / V souladu RoHS
- dostupné množství:
- 19832 Pieces
Úvod
BYCHIPS je distribuční odrůda pro QXK2J153KTPTZH, máme zásoby pro okamžitou přepravu a také k dispozici pro dlouhodobé zásobování. Zašlete nám svůj plán nákupu QXK2J153KTPTZH e-mailem vám poskytneme nejlepší cenu podle svého plánu.
Specifikace
| Napìtí - DC: | 630V |
|---|---|
| Napìtí - AC: | 250V |
| Tolerance: | ±10% |
| Ukončení: | PC Pins |
| Velikost / Rozměry: | 0.610" L x 0.217" W (15.50mm x 5.50mm) |
| Série: | QXK-ZH |
| Obal: | Bulk |
| Paket / krabice: | Radial |
| Ostatní jména: | 493-3583 |
| Provozní teplota: | -40°C ~ 105°C |
| Typ montáže: | Through Hole |
| Úroveň citlivosti na vlhkost (MSL): | 1 (Unlimited) |
| Výrobní standardní doba výroby: | 18 Weeks |
| Výrobní číslo výrobce: | QXK2J153KTPTZH |
| Rozestup vývodù: | 0.492" (12.50mm) |
| Výška - Sedící (Max): | 0.433" (11.00mm) |
| Funkce: | - |
| Rozšířený popis: | 0.015µF ±10% Film Capacitor 250V 630V Polyester, Metallized Radial |
| ESR (Equivalent Resistance Series): | - |
| dielektrikum Materiál: | Polyester, Metallized |
| Popis: | CAP FILM 0.015UF 10% 630VDC RAD |
| kapacitní: | 0.015µF |
| Aplikace: | High Frequency, Switching; High Pulse, DV/DT; EMI, RFI Suppression |
| Email: | [email protected] |
Související díly pro QXK2J153KTPTZH
| Obraz | Part Number | Výrobci | Popis | Pohled |
|---|---|---|---|---|
 |
QXK2J104KTPTZH | Nichicon | CAP FILM 0.1UF 10% 630VDC RADIAL | Dotaz |
 |
QXK2J104KTP | Nichicon | CAP FILM 0.1UF 10% 630VDC RADIAL | Dotaz |
 |
QXK2J155KTP | Nichicon | CAP FILM 1.5UF 10% 630VDC RADIAL | Dotaz |
 |
QXK2J154KTP | Nichicon | CAP FILM 0.15UF 10% 630VDC RAD | Dotaz |
 |
QXK2J683KTPTZH | Nichicon | CAP FILM 0.068UF 10% 630VDC RAD | Dotaz |
 |
QXK2J103KTP | Nichicon | CAP FILM 10000PF 10% 630VDC RAD | Dotaz |
 |
QXK2J153KTP | Nichicon | CAP FILM 0.015UF 10% 630VDC RAD | Dotaz |
 |
QXK2J154KTPTZH | Nichicon | CAP FILM 0.15UF 10% 630VDC RAD | Dotaz |
 |
QXK2J223KTP | Nichicon | CAP FILM 0.022UF 10% 630VDC RAD | Dotaz |
 |
QXK2J103KTPTZH | Nichicon | CAP FILM 10000PF 10% 630VDC RAD | Dotaz |
 |
QXK2J105KTP | Nichicon | CAP FILM 1UF 10% 630VDC RADIAL | Dotaz |
 |
QXK2J473KTPTZH | Nichicon | CAP FILM 0.047UF 10% 630VDC RAD | Dotaz |
