Koupit PMCM440VNEZ s BYCHPS
Koupit se zárukou

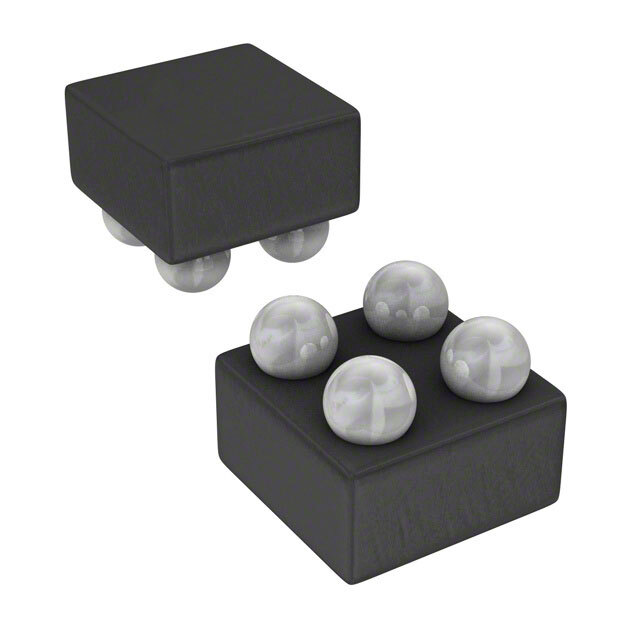

PMCM440VNEZ
- Part Number:
- PMCM440VNEZ
- Výrobce:
- Nexperia
- Popis:
- MOSFET N-CH 12V 4WLCSP
- Stav volného vedení / RoHS:
- Bez olova / V souladu RoHS
- dostupné množství:
- 15121 Pieces
- Datový list:
- PMCM440VNEZ.pdf
Úvod
BYCHIPS je distribuční odrůda pro PMCM440VNEZ, máme zásoby pro okamžitou přepravu a také k dispozici pro dlouhodobé zásobování. Zašlete nám svůj plán nákupu PMCM440VNEZ e-mailem vám poskytneme nejlepší cenu podle svého plánu.
Specifikace
| Vgs (th) (max) 'Id: | 900mV @ 250µA |
|---|---|
| Vgs (Max): | ±8V |
| Technika: | MOSFET (Metal Oxide) |
| Dodavatel zařízení Package: | 4-WLCSP (0.78x0.78) |
| Série: | - |
| RDS On (Max) @ Id, Vgs: | 67 mOhm @ 3A, 4.5V |
| Ztráta energie (Max): | 400mW (Ta), 12.5W (Tc) |
| Obal: | Tape & Reel (TR) |
| Paket / krabice: | 4-XFBGA, WLCSP |
| Ostatní jména: | 1727-2274-2 568-12560-2 568-12560-2-ND 934068625084 |
| Provozní teplota: | -55°C ~ 150°C (TJ) |
| Typ montáže: | Surface Mount |
| Úroveň citlivosti na vlhkost (MSL): | 1 (Unlimited) |
| Výrobní standardní doba výroby: | 20 Weeks |
| Výrobní číslo výrobce: | PMCM440VNEZ |
| Vstupní kapacita (Ciss) (Max) @ Vds: | 360pF @ 6V |
| Nabíjení brány (Qg) (Max) @ Vgs: | 8.2nC @ 4.5V |
| Typ FET: | N-Channel |
| FET Feature: | - |
| Rozšířený popis: | N-Channel 12V 3.9A (Ta) 400mW (Ta), 12.5W (Tc) Surface Mount 4-WLCSP (0.78x0.78) |
| Napětí měniče (max. Zap. RDS, min. Zap. Zap.): | 4.5V |
| Drain na zdroj napětí (Vdss): | 12V |
| Popis: | MOSFET N-CH 12V 4WLCSP |
| Proud - kontinuální odtok (Id) @ 25 ° C: | 3.9A (Ta) |
| Email: | [email protected] |
