Koupit ZXM64P035L3 s BYCHPS
Koupit se zárukou
ZXM64P035L3
- Part Number:
- ZXM64P035L3
- Výrobce:
- Diodes Incorporated
- Popis:
- MOSFET P-CH 35V 12A TO-220-3
- Stav volného vedení / RoHS:
- Bez olova / V souladu RoHS
- dostupné množství:
- 19564 Pieces
- Datový list:
- ZXM64P035L3.pdf
Úvod
BYCHIPS je distribuční odrůda pro ZXM64P035L3, máme zásoby pro okamžitou přepravu a také k dispozici pro dlouhodobé zásobování. Zašlete nám svůj plán nákupu ZXM64P035L3 e-mailem vám poskytneme nejlepší cenu podle svého plánu.
Specifikace
| Vgs (th) (max) 'Id: | 1V @ 250µA |
|---|---|
| Technika: | MOSFET (Metal Oxide) |

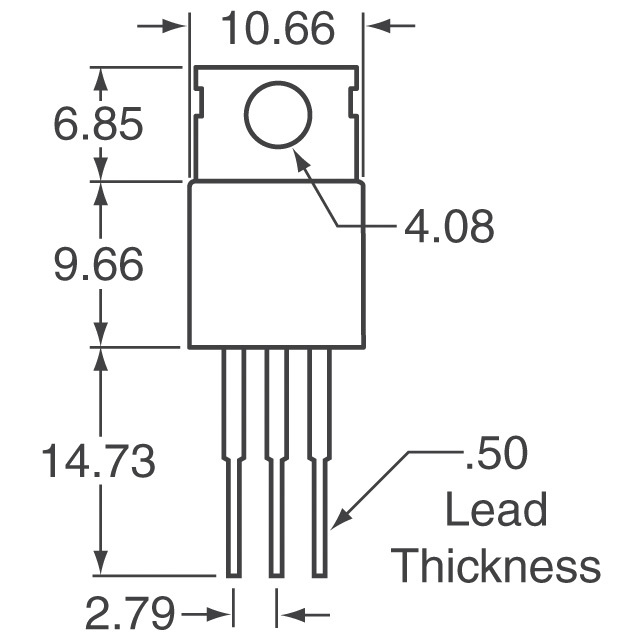

| Dodavatel zařízení Package: | TO-220-3 |
| Série: | - |
| RDS On (Max) @ Id, Vgs: | 75 mOhm @ 2.4A, 10V |
| Ztráta energie (Max): | 1.5W (Ta), 20W (Tc) |
| Obal: | Bulk |
| Paket / krabice: | TO-220-3 |
| Provozní teplota: | -55°C ~ 150°C (TJ) |
| Typ montáže: | Through Hole |
| Úroveň citlivosti na vlhkost (MSL): | 1 (Unlimited) |
| Výrobní číslo výrobce: | ZXM64P035L3 |
| Vstupní kapacita (Ciss) (Max) @ Vds: | 825pF @ 25V |
| Nabíjení brány (Qg) (Max) @ Vgs: | 46nC @ 10V |
| Typ FET: | P-Channel |
| FET Feature: | - |
| Rozšířený popis: | P-Channel 35V 3.3A (Ta), 12A (Tc) 1.5W (Ta), 20W (Tc) Through Hole TO-220-3 |
| Drain na zdroj napětí (Vdss): | 35V |
| Popis: | MOSFET P-CH 35V 12A TO-220-3 |
| Proud - kontinuální odtok (Id) @ 25 ° C: | 3.3A (Ta), 12A (Tc) |
| Email: | [email protected] |
