Koupit UWZ1H100MCL1GB s BYCHPS
Koupit se zárukou

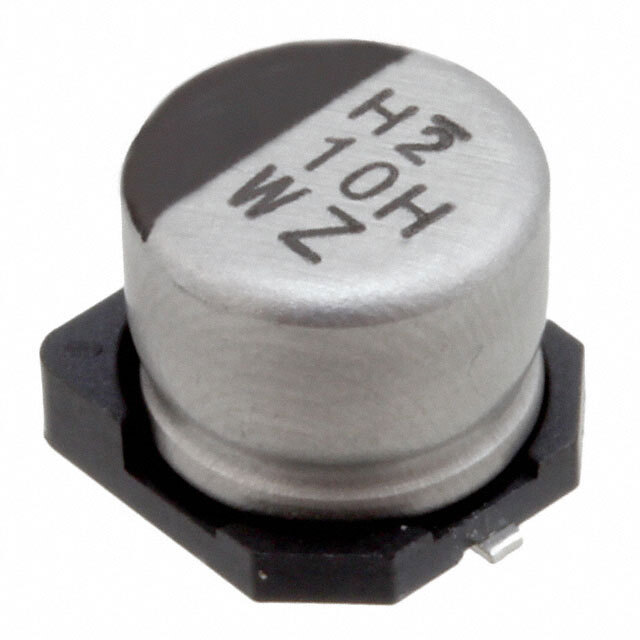

UWZ1H100MCL1GB
- Part Number:
- UWZ1H100MCL1GB
- Výrobce:
- Nichicon
- Popis:
- CAP ALUM 10UF 20% 50V SMD
- Stav volného vedení / RoHS:
- Bez olova / V souladu RoHS
- dostupné množství:
- 16132 Pieces
Úvod
BYCHIPS je distribuční odrůda pro UWZ1H100MCL1GB, máme zásoby pro okamžitou přepravu a také k dispozici pro dlouhodobé zásobování. Zašlete nám svůj plán nákupu UWZ1H100MCL1GB e-mailem vám poskytneme nejlepší cenu podle svého plánu.
Specifikace
| napìtí: | 50V |
|---|---|
| Tolerance: | ±20% |
| Povrchová montáž Land Velikost: | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Velikost / Rozměry: | 0.248" L x 0.213" W (6.30mm x 5.40mm) |
| Série: | UWZ |
| Ripple Current: | 30mA |
| Polarizace: | - |
| Obal: | Original-Reel® |
| Paket / krabice: | Radial, Can - SMD |
| Ostatní jména: | 493-9998-6 |
| Provozní teplota: | -55°C ~ 105°C |
| Typ montáže: | Surface Mount |
| Úroveň citlivosti na vlhkost (MSL): | 1 (Unlimited) |
| Výrobní standardní doba výroby: | 25 Weeks |
| Výrobní číslo výrobce: | UWZ1H100MCL1GB |
| Životnost @ Temp.: | 1000 Hrs @ 105°C |
| Rozestup vývodù: | - |
| Impedance: | - |
| Výška - Sedící (Max): | 0.224" (5.70mm) |
| Rozšířený popis: | 10µF 50V Aluminum Capacitors Radial, Can - SMD 1000 Hrs @ 105°C |
| ESR (Equivalent Resistance Series): | - |
| Popis: | CAP ALUM 10UF 20% 50V SMD |
| kapacitní: | 10µF |
| Aplikace: | General Purpose |
| Email: | [email protected] |
