Koupit UVK2C471MHD s BYCHPS
Koupit se zárukou

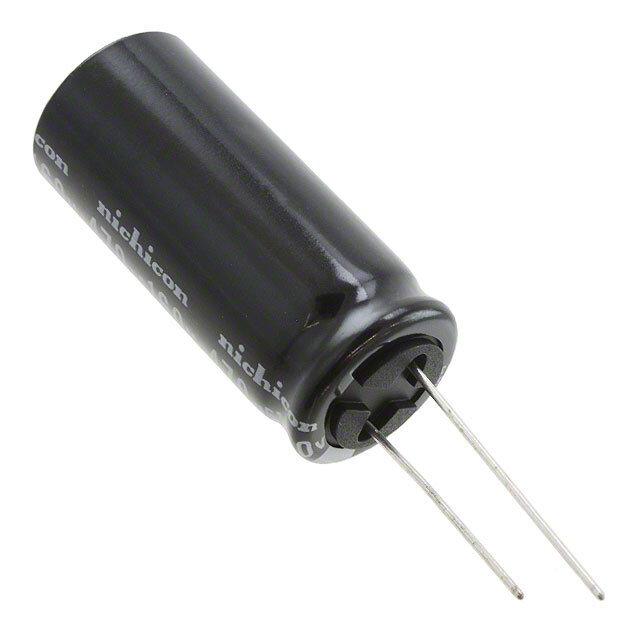

UVK2C471MHD
- Part Number:
- UVK2C471MHD
- Výrobce:
- Nichicon
- Popis:
- CAP ALUM 470UF 20% 160V RADIAL
- Stav volného vedení / RoHS:
- Bez olova / V souladu RoHS
- dostupné množství:
- 18218 Pieces
- Datový list:
- 1.UVK2C471MHD.pdf2.UVK2C471MHD.pdf
Úvod
BYCHIPS je distribuční odrůda pro UVK2C471MHD, máme zásoby pro okamžitou přepravu a také k dispozici pro dlouhodobé zásobování. Zašlete nám svůj plán nákupu UVK2C471MHD e-mailem vám poskytneme nejlepší cenu podle svého plánu.
Specifikace
| napìtí: | 160V |
|---|---|
| Tolerance: | ±20% |
| Povrchová montáž Land Velikost: | - |
| Velikost / Rozměry: | 0.709" Dia (18.00mm) |
| Série: | UVK |
| Ripple Current: | 1.2A |
| Polarizace: | Polar |
| Obal: | Bulk |
| Paket / krabice: | Radial, Can |
| Ostatní jména: | 493-7353 UVK2C471MHD-ND |
| Provozní teplota: | -40°C ~ 85°C |
| Typ montáže: | Through Hole |
| Úroveň citlivosti na vlhkost (MSL): | 1 (Unlimited) |
| Výrobní standardní doba výroby: | 17 Weeks |
| Výrobní číslo výrobce: | UVK2C471MHD |
| Životnost @ Temp.: | 2000 Hrs @ 85°C |
| Rozestup vývodù: | 0.295" (7.50mm) |
| Impedance: | - |
| Výška - Sedící (Max): | 1.654" (42.00mm) |
| Rozšířený popis: | 470µF 160V Aluminum Capacitors Radial, Can 2000 Hrs @ 85°C |
| ESR (Equivalent Resistance Series): | - |
| Popis: | CAP ALUM 470UF 20% 160V RADIAL |
| kapacitní: | 470µF |
| Aplikace: | General Purpose |
| Email: | [email protected] |
Související díly pro UVK2C471MHD
| Obraz | Part Number | Výrobci | Popis | Pohled |
|---|---|---|---|---|
 |
UVK2C470MPD1TD | Nichicon | CAP ALUM 47UF 20% 160V RADIAL | Dotaz |
 |
UVK2C680MHD1TO | Nichicon | CAP ALUM 68UF 20% 160V RADIAL | Dotaz |
|
UVK2C470MPD | Nichicon | CAP ALUM 47UF 20% 160V RADIAL | Dotaz |
 |
UVK2C100MPD1TA | Nichicon | CAP ALUM 10UF 20% 160V RADIAL | Dotaz |
 |
UVK2C101MHD1TO | Nichicon | CAP ALUM 100UF 20% 160V RADIAL | Dotaz |
|
UVK2C680MHD | Nichicon | CAP ALUM 68UF 20% 160V RADIAL | Dotaz |
 |
UVK2C221MHD | Nichicon | CAP ALUM 220UF 20% 160V RADIAL | Dotaz |
 |
UVK2C220MPD1TD | Nichicon | CAP ALUM 22UF 20% 160V RADIAL | Dotaz |
 |
UVK2C330MPD1TD | Nichicon | CAP ALUM 33UF 20% 160V RADIAL | Dotaz |
 |
UVK2C331MHD | Nichicon | CAP ALUM 330UF 20% 160V RADIAL | Dotaz |
|
UVK2C330MPD | Nichicon | CAP ALUM 33UF 20% 160V RADIAL | Dotaz |
|
UVK2C101MHD | Nichicon | CAP ALUM 100UF 20% 160V RADIAL | Dotaz |
|
UVK2C100MPD | Nichicon | CAP ALUM 10UF 20% 160V RADIAL | Dotaz |
|
UVK2C220MPD | Nichicon | CAP ALUM 22UF 20% 160V RADIAL | Dotaz |
|
UVK2C100MPD1TD | Nichicon | CAP ALUM 10UF 20% 160V RADIAL | Dotaz |
 |
UVK2C102MRD | Nichicon | CAP ALUM 1000UF 20% 160V RADIAL | Dotaz |
