Koupit UPB2E101MHD1TN s BYCHPS
Koupit se zárukou

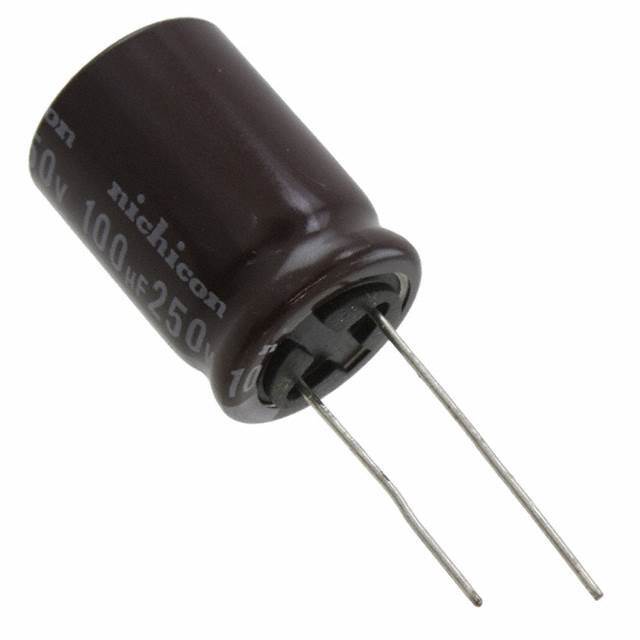

UPB2E101MHD1TN
- Part Number:
- UPB2E101MHD1TN
- Výrobce:
- Nichicon
- Popis:
- CAP ALUM 100UF 20% 250V RADIAL
- Stav volného vedení / RoHS:
- Bez olova / V souladu RoHS
- dostupné množství:
- 14005 Pieces
- Datový list:
- 1.UPB2E101MHD1TN.pdf2.UPB2E101MHD1TN.pdf
Úvod
BYCHIPS je distribuční odrůda pro UPB2E101MHD1TN, máme zásoby pro okamžitou přepravu a také k dispozici pro dlouhodobé zásobování. Zašlete nám svůj plán nákupu UPB2E101MHD1TN e-mailem vám poskytneme nejlepší cenu podle svého plánu.
Specifikace
| napìtí: | 250V |
|---|---|
| Tolerance: | ±20% |
| Povrchová montáž Land Velikost: | - |
| Velikost / Rozměry: | 0.709" Dia (18.00mm) |
| Série: | PB |
| Ripple Current: | 600mA |
| Polarizace: | - |
| Obal: | Tape & Box (TB) |
| Paket / krabice: | Radial, Can |
| Ostatní jména: | 493-4957-3 |
| Provozní teplota: | -25°C ~ 105°C |
| Typ montáže: | Through Hole |
| Úroveň citlivosti na vlhkost (MSL): | 1 (Unlimited) |
| Výrobní číslo výrobce: | UPB2E101MHD1TN |
| Životnost @ Temp.: | 5000 Hrs @ 105°C |
| Rozestup vývodù: | 0.295" (7.50mm) |
| Impedance: | - |
| Výška - Sedící (Max): | 1.043" (26.50mm) |
| Rozšířený popis: | 100µF 250V Aluminum Capacitors Radial, Can 5000 Hrs @ 105°C |
| ESR (Equivalent Resistance Series): | - |
| Popis: | CAP ALUM 100UF 20% 250V RADIAL |
| kapacitní: | 100µF |
| Aplikace: | General Purpose |
| Email: | [email protected] |
Související díly pro UPB2E101MHD1TN
| Obraz | Part Number | Výrobci | Popis | Pohled |
|---|---|---|---|---|
 |
UPB2E101MHD | Nichicon | CAP ALUM 100UF 20% 250V RADIAL | Dotaz |
 |
UPB2E151MHD | Nichicon | CAP ALUM 150UF 20% 250V RADIAL | Dotaz |
 |
UPB2E181MHD | Nichicon | CAP ALUM 180UF 20% 250V RADIAL | Dotaz |
 |
UPB2E680MHD1TN | Nichicon | CAP ALUM 68UF 20% 250V RADIAL | Dotaz |
 |
UPB2E330MHD1TO | Nichicon | CAP ALUM 33UF 20% 250V RADIAL | Dotaz |
 |
UPB2E391MRD | Nichicon | CAP ALUM 390UF 20% 250V RADIAL | Dotaz |
 |
UPB2E330MHD | Nichicon | CAP ALUM 33UF 20% 250V RADIAL | Dotaz |
 |
UPB2E391MRD6 | Nichicon | CAP ALUM 390UF 20% 250V RADIAL | Dotaz |
 |
UPB2E221MHD | Nichicon | CAP ALUM 220UF 20% 250V RADIAL | Dotaz |
|
UPB2E220MHD1TO | Nichicon | CAP ALUM 22UF 20% 250V RADIAL | Dotaz |
 |
UPB2E470MHD | Nichicon | CAP ALUM 47UF 20% 250V RADIAL | Dotaz |
|
UPB2E470MHD1TO | Nichicon | CAP ALUM 47UF 20% 250V RADIAL | Dotaz |
|
UPB2E680MHD | Nichicon | CAP ALUM 68UF 20% 250V RADIAL | Dotaz |
|
UPB2E220MHD | Nichicon | CAP ALUM 22UF 20% 250V RADIAL | Dotaz |
 |
UPB2E471MRD | Nichicon | CAP ALUM 470UF 20% 250V RADIAL | Dotaz |
