Koupit UHE2A150MET s BYCHPS
Koupit se zárukou
UHE2A150MET
- Part Number:
- UHE2A150MET
- Výrobce:
- Nichicon
- Popis:

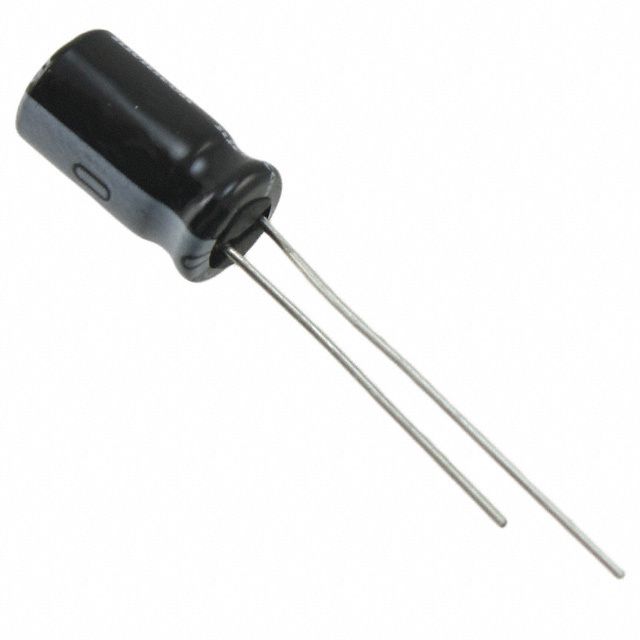

- CAP ALUM 15UF 20% 100V RADIAL
- Stav volného vedení / RoHS:
- Obsahuje olověný / RoHS neodpovídající
- dostupné množství:
- 13221 Pieces
- Datový list:
- 1.UHE2A150MET.pdf2.UHE2A150MET.pdf
Úvod
BYCHIPS je distribuční odrůda pro UHE2A150MET, máme zásoby pro okamžitou přepravu a také k dispozici pro dlouhodobé zásobování. Zašlete nám svůj plán nákupu UHE2A150MET e-mailem vám poskytneme nejlepší cenu podle svého plánu.
Specifikace
| napìtí: | 100V |
|---|---|
| Tolerance: | ±20% |
| Povrchová montáž Land Velikost: | - |
| Velikost / Rozměry: | 0.248" Dia (6.30mm) |
| Série: | UHE |
| Ripple Current: | 69.3mA @ 120Hz |
| Polarizace: | Polar |
| Obal: | Bulk |
| Paket / krabice: | Radial, Can |
| Provozní teplota: | -40°C ~ 105°C |
| Typ montáže: | Through Hole |
| Úroveň citlivosti na vlhkost (MSL): | 1 (Unlimited) |
| Výrobní číslo výrobce: | UHE2A150MET |
| Životnost @ Temp.: | 5000 Hrs @ 105°C |
| Rozestup vývodù: | 0.098" (2.50mm) |
| Impedance: | 1.2 Ohm |
| Výška - Sedící (Max): | 0.433" (11.00mm) |
| Rozšířený popis: | 15µF 100V Aluminum Capacitors Radial, Can 5000 Hrs @ 105°C |
| ESR (Equivalent Resistance Series): | - |
| Popis: | CAP ALUM 15UF 20% 100V RADIAL |
| kapacitní: | 15µF |
| Aplikace: | General Purpose |
| Email: | [email protected] |
