Koupit UCZ1H102MNQ1MS s BYCHPS
Koupit se zárukou

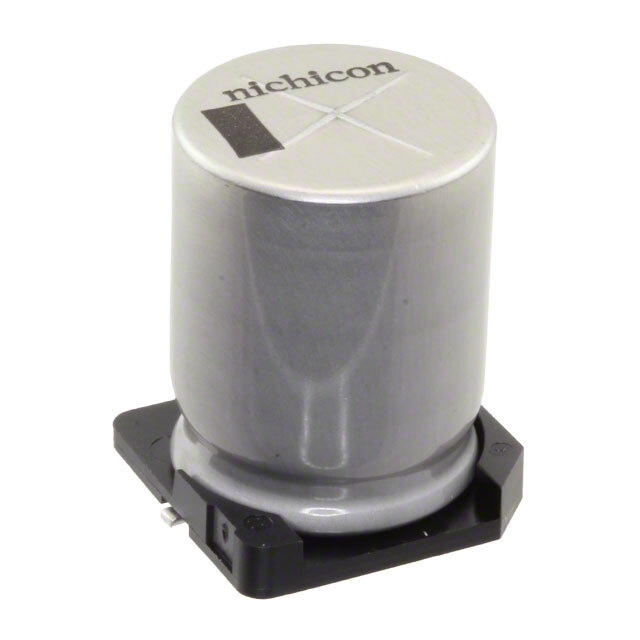

UCZ1H102MNQ1MS
- Part Number:
- UCZ1H102MNQ1MS
- Výrobce:
- Nichicon
- Popis:
- CAP ALUM 1000UF 20% 50V SMD
- Stav volného vedení / RoHS:
- Bez olova / V souladu RoHS
- dostupné množství:
- 14920 Pieces
Úvod
BYCHIPS je distribuční odrůda pro UCZ1H102MNQ1MS, máme zásoby pro okamžitou přepravu a také k dispozici pro dlouhodobé zásobování. Zašlete nám svůj plán nákupu UCZ1H102MNQ1MS e-mailem vám poskytneme nejlepší cenu podle svého plánu.
Specifikace
| napìtí: | 50V |
|---|---|
| Tolerance: | ±20% |
| Povrchová montáž Land Velikost: | 0.673" L x 0.673" W (17.10mm x 17.10mm) |
| Velikost / Rozměry: | 0.630" Dia (16.00mm) |
| Série: | UCZ |
| Ripple Current: | 2.8A |
| Polarizace: | Polar |
| Obal: | Tape & Reel (TR) |
| Paket / krabice: | Radial, Can - SMD |
| Ostatní jména: | 493-13942-2 |
| Provozní teplota: | -40°C ~ 125°C |
| Typ montáže: | Surface Mount |
| Úroveň citlivosti na vlhkost (MSL): | 1 (Unlimited) |
| Výrobní standardní doba výroby: | 18 Weeks |
| Výrobní číslo výrobce: | UCZ1H102MNQ1MS |
| Životnost @ Temp.: | 4000 Hrs @ 125°C |
| Rozestup vývodù: | - |
| Impedance: | - |
| Výška - Sedící (Max): | 0.886" (22.50mm) |
| Rozšířený popis: | 1000µF 50V Aluminum Capacitors Radial, Can - SMD 40 mOhm @ 100kHz 4000 Hrs @ 125°C |
| ESR (Equivalent Resistance Series): | 40 mOhm @ 100kHz |
| Popis: | CAP ALUM 1000UF 20% 50V SMD |
| kapacitní: | 1000µF |
| Aplikace: | General Purpose |
| Email: | [email protected] |
