Koupit UCD1H331MNQ1MS s BYCHPS
Koupit se zárukou

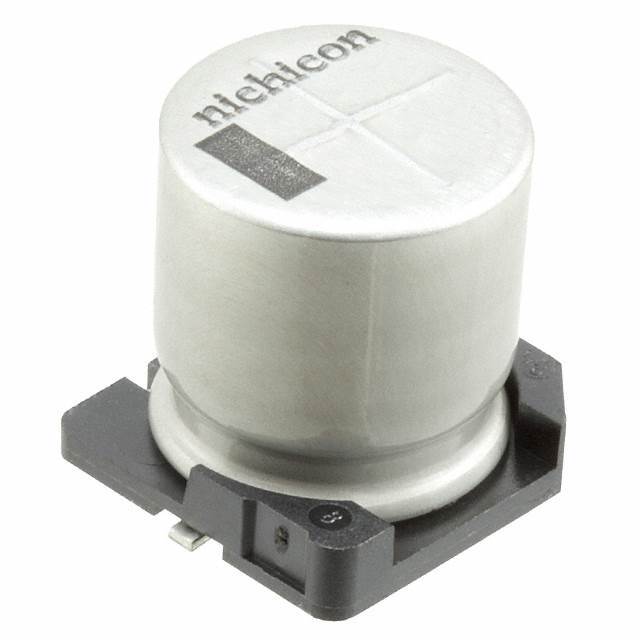

UCD1H331MNQ1MS
- Part Number:
- UCD1H331MNQ1MS
- Výrobce:
- Nichicon
- Popis:
- CAP ALUM 330UF 20% 50V SMD
- Stav volného vedení / RoHS:
- Bez olova / V souladu RoHS
- dostupné množství:
- 15093 Pieces
Úvod
BYCHIPS je distribuční odrůda pro UCD1H331MNQ1MS, máme zásoby pro okamžitou přepravu a také k dispozici pro dlouhodobé zásobování. Zašlete nám svůj plán nákupu UCD1H331MNQ1MS e-mailem vám poskytneme nejlepší cenu podle svého plánu.
Specifikace
| napìtí: | 50V |
|---|---|
| Tolerance: | ±20% |
| Povrchová montáž Land Velikost: | 0.535" L x 0.535" W (13.60mm x 13.60mm) |
| Velikost / Rozměry: | 0.492" Dia (12.50mm) |
| Série: | UCD |
| Ripple Current: | 450mA @ 120Hz |
| Polarizace: | Polar |
| Obal: | Tape & Reel (TR) |
| Paket / krabice: | Radial, Can - SMD |
| Ostatní jména: | 493-6391-2 UCD1H331MNQ1MS-ND |
| Provozní teplota: | -55°C ~ 105°C |
| Typ montáže: | Surface Mount |
| Úroveň citlivosti na vlhkost (MSL): | 1 (Unlimited) |
| Výrobní standardní doba výroby: | 20 Weeks |
| Výrobní číslo výrobce: | UCD1H331MNQ1MS |
| Životnost @ Temp.: | 5000 Hrs @ 105°C |
| Rozestup vývodù: | - |
| Impedance: | 120 mOhm |
| Výška - Sedící (Max): | 0.571" (14.50mm) |
| Rozšířený popis: | 330µF 50V Aluminum Capacitors Radial, Can - SMD 5000 Hrs @ 105°C |
| ESR (Equivalent Resistance Series): | - |
| Popis: | CAP ALUM 330UF 20% 50V SMD |
| kapacitní: | 330µF |
| Aplikace: | General Purpose |
| Email: | [email protected] |
Související díly pro UCD1H331MNQ1MS
| Obraz | Part Number | Výrobci | Popis | Pohled |
|---|---|---|---|---|
 |
UCD1H331MCL6GS | Nichicon | CAP ALUM 330UF 20% 50V SMD | Dotaz |
 |
UCD1H330MC6LGS | Nichicon | CAP ALUM 33UF 20% 50V SMD | Dotaz |
|
UCD1H330MCL6GS | Nichicon | CAP ALUM 33UF 20% 50V SMD | Dotaz |
 |
UCD1H3R3MCL1GS | Nichicon | CAP ALUM 3.3UF 20% 50V SMD | Dotaz |
 |
UCD1H100MC6LGS | Nichicon | CAP ALUM 10UF 20% 50V SMD | Dotaz |
 |
UCD1H330MCL1GS | Nichicon | CAP ALUM 33UF 20% 50V SMD | Dotaz |
|
UCD1H330MC1LGS | Nichicon | CAP ALUM 33UF 20% 50V SMD | Dotaz |
|
UCD1H151MNL1GS | Nichicon | CAP ALUM 150UF 20% 50V SMD | Dotaz |
|
UCD1H2R2MCL1GS | Nichicon | CAP ALUM 2.2UF 20% 50V SMD | Dotaz |
|
UCD1H470MCL1GS | Nichicon | CAP ALUM 47UF 20% 50V SMD | Dotaz |
 |
UCD1H220MCL1GS | Nichicon | CAP ALUM 22UF 20% 50V SMD | Dotaz |
 |
UCD1H681MNQ1MS | Nichicon | CAP ALUM 680UF 20% 50V SMD | Dotaz |
|
UCD1H010MCL1GS | Nichicon | CAP ALUM 1UF 20% 50V SMD | Dotaz |
