Koupit SDR1305-6R8Y s BYCHPS
Koupit se zárukou

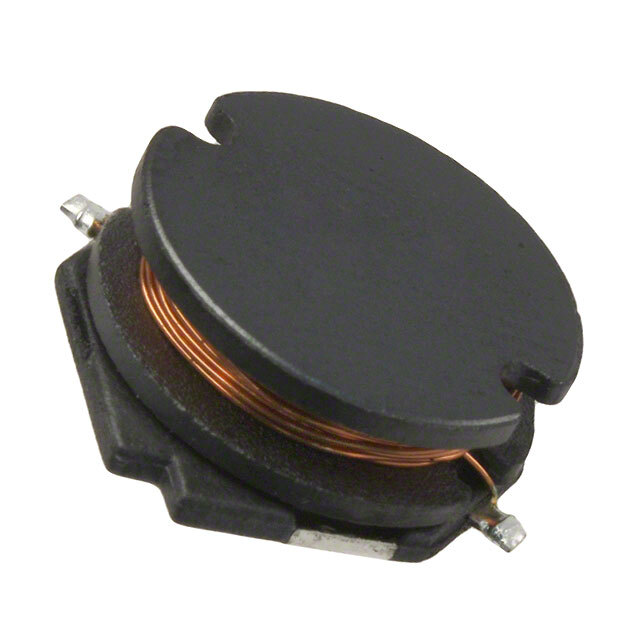

SDR1305-6R8Y
- Part Number:
- SDR1305-6R8Y
- Výrobce:
- Bourns, Inc.
- Popis:
- FIXED IND 6.8UH 4.3A 24 MOHM SMD
- Stav volného vedení / RoHS:
- Bez olova / V souladu RoHS
- dostupné množství:
- 13484 Pieces
- Datový list:
- SDR1305-6R8Y.pdf
Úvod
BYCHIPS je distribuční odrůda pro SDR1305-6R8Y, máme zásoby pro okamžitou přepravu a také k dispozici pro dlouhodobé zásobování. Zašlete nám svůj plán nákupu SDR1305-6R8Y e-mailem vám poskytneme nejlepší cenu podle svého plánu.
Specifikace
| Typ: | Wirewound |
|---|---|
| Tolerance: | ±25% |
| Dodavatel zařízení Package: | - |
| Velikost / Rozměry: | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| stínění: | Unshielded |
| Série: | SDR1305 |
| hodnocení: | - |
| Q @ Freq: | 17 @ 7.96MHz |
| Obal: | Tape & Reel (TR) |
| Paket / krabice: | Nonstandard |
| Provozní teplota: | -40°C ~ 125°C |
| Typ montáže: | Surface Mount |
| Úroveň citlivosti na vlhkost (MSL): | 1 (Unlimited) |
| Materiál - jádro: | Ferrite |
| Výrobní standardní doba výroby: | 20 Weeks |
| Výrobní číslo výrobce: | SDR1305-6R8Y |
| indukčnost: | 6.8µH |
| Výška - Sedící (Max): | 0.201" (5.10mm) |
| Frekvence - Test: | 100kHz |
| Frekvence - Self Resonant: | 32MHz |
| Rozšířený popis: | 6.8µH Unshielded Wirewound Inductor 4.3A 24 mOhm Max Nonstandard |
| Popis: | FIXED IND 6.8UH 4.3A 24 MOHM SMD |
| DC Resistance (DCR): | 24 mOhm Max |
| Jmenovitá hodnota proudu: | 4.3A |
| Proud - Saturace: | 5.2A |
| Email: | [email protected] |
Související díly pro SDR1305-6R8Y
| Obraz | Part Number | Výrobci | Popis | Pohled |
|---|---|---|---|---|
 |
SDR1305-151K | Bourns Inc. | FIXED IND 150UH 1.2A 380 MOHM | Dotaz |
|
SDR1305-681K | Bourns Inc. | FIXED IND 680UH 600MA 1.4 OHM | Dotaz |
 |
SDR1307A-101K | Bourns Inc. | FIXED IND 100UH 1.9A 180 MOHM | Dotaz |
|
SDR1305-471K | Bourns Inc. | FIXED IND 470UH 670MA 1.15 OHM | Dotaz |
 |
SDR1307-680KL | Bourns Inc. | FIXED IND 68UH 2.3A 120 MOHM SMD | Dotaz |
|
SDR1305-331K | Bourns Inc. | FIXED IND 330UH 850MA 700 MOHM | Dotaz |
|
SDR1305-330M | Bourns Inc. | FIXED IND 33UH 2.5A 85 MOHM SMD | Dotaz |
|
SDR1305-150M | Bourns Inc. | FIXED IND 15UH 3.3A 46 MOHM SMD | Dotaz |
|
SDR1305-2R5Y | Bourns Inc. | FIXED IND 2.5UH 7.2A 9.8 MOHM | Dotaz |
|
SDR1305-100M | Bourns Inc. | FIXED IND 10UH 3.6A 37 MOHM SMD | Dotaz |
|
SDR1305-221K | Bourns Inc. | FIXED IND 220UH 1A 500 MOHM SMD | Dotaz |
|
SDR1305-470M | Bourns Inc. | FIXED IND 47UH 1.9A 130 MOHM SMD | Dotaz |
|
SDR1305-220M | Bourns Inc. | FIXED IND 22UH 2.9A 62 MOHM SMD | Dotaz |
|
SDR1305-680M | Bourns Inc. | FIXED IND 68UH 1.65A 165 MOHM | Dotaz |
|
SDR1307-120ML | Bourns Inc. | FIXED IND 12UH 4.8A 30 MOHM SMD | Dotaz |
|
SDR1305-4R6Y | Bourns Inc. | FIXED IND 4.6UH 5.2A 16.5 MOHM | Dotaz |
|
SDR1305-3R5Y | Bourns Inc. | FIXED IND 3.5UH 6A 10.5 MOHM SMD | Dotaz |
|
SDR1305-101K | Bourns Inc. | FIXED IND 100UH 1.4A 255 MOHM | Dotaz |
|
SDR1305-102K | Bourns Inc. | FIXED IND 1MH 460MA 2.35 OHM SMD | Dotaz |
