Koupit IRFH4253DTRPBF s BYCHPS
Koupit se zárukou

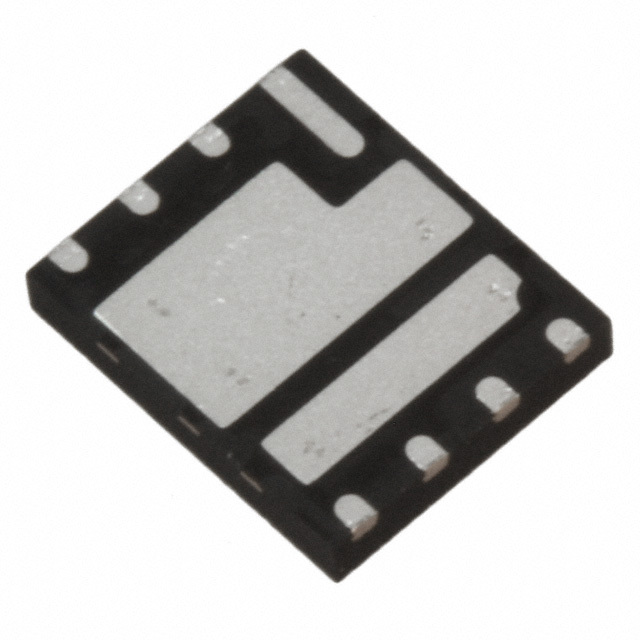

IRFH4253DTRPBF
- Part Number:
- IRFH4253DTRPBF
- Popis:
- MOSFET 2N-CH 25V 64A/145A PQFN
- Stav volného vedení / RoHS:
- Bez olova / V souladu RoHS
- dostupné množství:
- 14810 Pieces
- Datový list:
- IRFH4253DTRPBF.pdf
Úvod
BYCHIPS je distribuční odrůda pro IRFH4253DTRPBF, máme zásoby pro okamžitou přepravu a také k dispozici pro dlouhodobé zásobování. Zašlete nám svůj plán nákupu IRFH4253DTRPBF e-mailem vám poskytneme nejlepší cenu podle svého plánu.
Specifikace
| Vgs (th) (max) 'Id: | 2.1V @ 35µA |
|---|---|
| Dodavatel zařízení Package: | PQFN (5x6) |
| Série: | HEXFET® |
| RDS On (Max) @ Id, Vgs: | 3.2 mOhm @ 30A, 10V |
| Power - Max: | 31W, 50W |
| Obal: | Tape & Reel (TR) |
| Paket / krabice: | 8-PowerVDFN |
| Ostatní jména: | IRFH4253DTRPBFTR SP001556246 |
| Provozní teplota: | -55°C ~ 150°C (TJ) |
| Typ montáže: | Surface Mount |
| Úroveň citlivosti na vlhkost (MSL): | 1 (Unlimited) |
| Výrobní standardní doba výroby: | 12 Weeks |
| Výrobní číslo výrobce: | IRFH4253DTRPBF |
| Vstupní kapacita (Ciss) (Max) @ Vds: | 1314pF @ 13V |
| Nabíjení brány (Qg) (Max) @ Vgs: | 15nC @ 4.5V |
| Typ FET: | 2 N-Channel (Dual) |
| FET Feature: | Logic Level Gate |
| Rozšířený popis: | Mosfet Array 2 N-Channel (Dual) 25V 64A, 145A 31W, 50W Surface Mount PQFN (5x6) |
| Drain na zdroj napětí (Vdss): | 25V |
| Popis: | MOSFET 2N-CH 25V 64A/145A PQFN |
| Proud - kontinuální odtok (Id) @ 25 ° C: | 64A, 145A |
| Email: | [email protected] |
Související díly pro IRFH4253DTRPBF
| Obraz | Part Number | Výrobci | Popis | Pohled |
|---|---|---|---|---|
 |
IRFH4234TRPBF | Infineon Technologies | MOSFET N-CH 25V 22A PQFN | Dotaz |
|
IRFH4213TRPBF | Infineon Technologies | MOSFET N-CH 25V 41A 8PQFN | Dotaz |
|
IRFH4226TRPBF | Infineon Technologies | MOSFET N-CH 25V 70A PQFN 5X6 | Dotaz |
 |
IRFH4255DTRPBF | Infineon Technologies | MOSFET 2N-CH 25V 64A/105A PQFN | Dotaz |
|
IRFH4257DTRPBF | Infineon Technologies | MOSFET 2N-CH 25V 25A 24PQFN | Dotaz |
|
IRFH4210TRPBF | Infineon Technologies | MOSFET N-CH 25V 45A 8PQFN | Dotaz |
|
IRFH4251DTRPBF | Infineon Technologies | MOSFET 2N-CH 25V 64A/188A PQFN | Dotaz |
|
IRFH4213DTRPBF | Infineon Technologies | MOSFET N-CH 25V 40A 8PQFN | Dotaz |
|
IRFH4209DTRPBF | Infineon Technologies | MOSFET N-CH 25V 44A 8PQFN | Dotaz |
|
IRFH4210DTRPBF | Infineon Technologies | MOSFET N-CH 25V 44A 8PQFN | Dotaz |
 |
IRFH4201TRPBF | Infineon Technologies | MOSFET N-CH 25V 49A 8PQFN | Dotaz |
