Koupit FGAF20N60SMD s BYCHPS
Koupit se zárukou

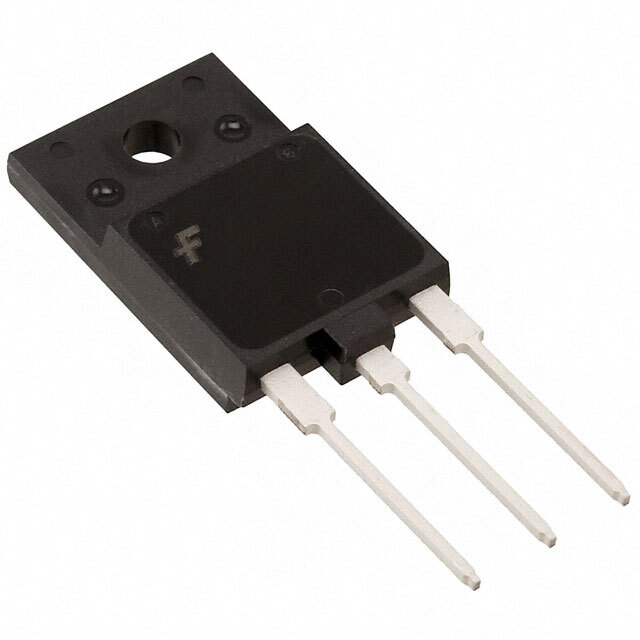

FGAF20N60SMD
- Part Number:
- FGAF20N60SMD
- Výrobce:
- Fairchild/ON Semiconductor
- Popis:
- IGBT 600V 40A 62.5W TO-3PF
- Stav volného vedení / RoHS:
- Bez olova / V souladu RoHS
- dostupné množství:
- 17025 Pieces
- Datový list:
- FGAF20N60SMD.pdf
Úvod
BYCHIPS je distribuční odrůda pro FGAF20N60SMD, máme zásoby pro okamžitou přepravu a také k dispozici pro dlouhodobé zásobování. Zašlete nám svůj plán nákupu FGAF20N60SMD e-mailem vám poskytneme nejlepší cenu podle svého plánu.
Specifikace
| Napětí - kolektoru emitoru Breakdown (Max): | 600V |
|---|---|
| VCE (o) (Max) @ VGE, Ic: | 1.7V @ 15V, 20A |
| Zkušební podmínky: | 400V, 20A, 10 Ohm, 15V |
| Td (zapnuto / vypnuto) při 25 ° C: | 12ns/91ns |
| přepínání energie: | 452µJ (on), 141µJ (off) |
| Dodavatel zařízení Package: | TO-3PF |
| Série: | - |
| Reverse Time Recovery (TRR): | 26.7ns |
| Power - Max: | 75W |
| Obal: | Tube |
| Paket / krabice: | TO-3P-3 Full Pack |
| Provozní teplota: | -55°C ~ 175°C (TJ) |
| Typ montáže: | Through Hole |
| Úroveň citlivosti na vlhkost (MSL): | 1 (Unlimited) |
| Výrobní standardní doba výroby: | 31 Weeks |
| Výrobní číslo výrobce: | FGAF20N60SMD |
| Typ vstupu: | Standard |
| Typ IGBT: | Field Stop |
| Gate Charge: | 64nC |
| Rozšířený popis: | IGBT Field Stop 600V 40A 75W Through Hole TO-3PF |
| Popis: | IGBT 600V 40A 62.5W TO-3PF |
| Aktuální - sběratel Pulsní (ICM): | 60A |
| Proud - Collector (Ic) (Max): | 40A |
| Email: | [email protected] |
