Koupit APTC90DAM60T1G s BYCHPS
Koupit se zárukou

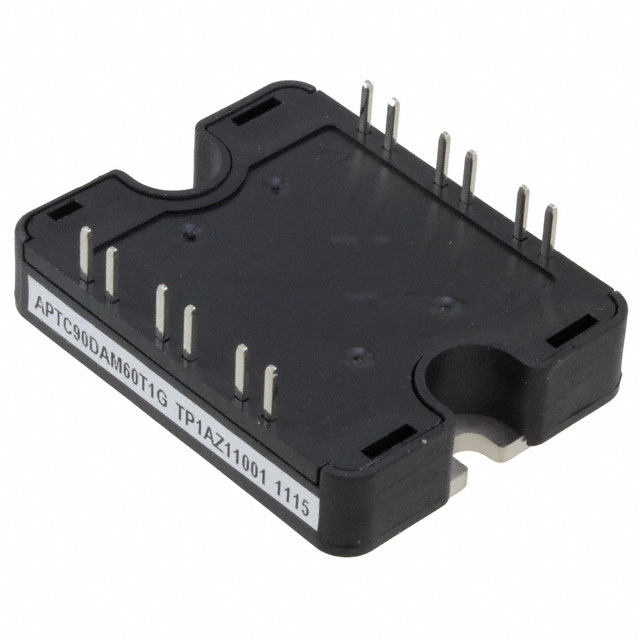

APTC90DAM60T1G
- Part Number:
- APTC90DAM60T1G
- Výrobce:
- Microsemi
- Popis:
- MOSFET N-CH 900V 59A SP1
- Stav volného vedení / RoHS:
- Bez olova / V souladu RoHS
- dostupné množství:
- 16289 Pieces
- Datový list:
- APTC90DAM60T1G.pdf
Úvod
BYCHIPS je distribuční odrůda pro APTC90DAM60T1G, máme zásoby pro okamžitou přepravu a také k dispozici pro dlouhodobé zásobování. Zašlete nám svůj plán nákupu APTC90DAM60T1G e-mailem vám poskytneme nejlepší cenu podle svého plánu.
Specifikace
| Vgs (th) (max) 'Id: | 3.5V @ 6mA |
|---|---|
| Technika: | MOSFET (Metal Oxide) |
| Dodavatel zařízení Package: | SP1 |
| Série: | CoolMOS™ |
| RDS On (Max) @ Id, Vgs: | 60 mOhm @ 52A, 10V |
| Ztráta energie (Max): | 462W (Tc) |
| Obal: | Tray |
| Paket / krabice: | SP1 |
| Provozní teplota: | -40°C ~ 150°C (TJ) |
| Typ montáže: | Chassis Mount |
| Úroveň citlivosti na vlhkost (MSL): | 1 (Unlimited) |
| Výrobní standardní doba výroby: | 22 Weeks |
| Výrobní číslo výrobce: | APTC90DAM60T1G |
| Vstupní kapacita (Ciss) (Max) @ Vds: | 13600pF @ 100V |
| Nabíjení brány (Qg) (Max) @ Vgs: | 540nC @ 10V |
| Typ FET: | N-Channel |
| FET Feature: | Super Junction |
| Rozšířený popis: | N-Channel 900V 59A 462W (Tc) Chassis Mount SP1 |
| Drain na zdroj napětí (Vdss): | 900V |
| Popis: | MOSFET N-CH 900V 59A SP1 |
| Proud - kontinuální odtok (Id) @ 25 ° C: | 59A |
| Email: | [email protected] |
Související díly pro APTC90DAM60T1G
| Obraz | Part Number | Výrobci | Popis | Pohled |
|---|---|---|---|---|
 |
APTC90AM60SCTG | Microsemi Corporation | MOSFET 2N-CH 900V 59A SP4 | Dotaz |
|
APTC90AM60T1G | Microsemi Corporation | MOSFET 2N-CH 900V 59A SP1 | Dotaz |
|
APTC90H12SCTG | Microsemi Corporation | MOSFET 4N-CH 900V 30A SP4 | Dotaz |
|
APTC90DAM60CT1G | Microsemi Corporation | MOSFET N-CH 900V 59A SP1 | Dotaz |
|
APTC90HM60T3G | Microsemi Corporation | MOSFET 4N-CH 900V 59A SP3 | Dotaz |
|
APTC90H12T1G | Microsemi Corporation | MOSFET 4N-CH 900V 30A SP1 | Dotaz |
|
APTC90SKM60CT1G | Microsemi Corporation | MOSFET N-CH 900V 59A SP1 | Dotaz |
|
APTC90DDA12T1G | Microsemi Corporation | MOSFET 2N-CH 900V 30A SP1 | Dotaz |
|
APTC90TAM60TPG | Microsemi Corporation | MOSFET 6N-CH 900V 59A SP6-P | Dotaz |
|
APTC90AM602G | Microsemi Corporation | MOSFET 2N-CH 900V 59A SP2 | Dotaz |
|
APTC90SKM60T1G | Microsemi Corporation | MOSFET N-CH 900V 59A SP1 | Dotaz |
|
APTC90H12T2G | Microsemi Corporation | MOSFET 4N-CH 900V 30A SP2 | Dotaz |
|
APTC90DSK12T1G | Microsemi Corporation | MOSFET 2N-CH 900V 30A SP1 | Dotaz |
