Koupit UVY2D471MRD s BYCHPS
Koupit se zárukou

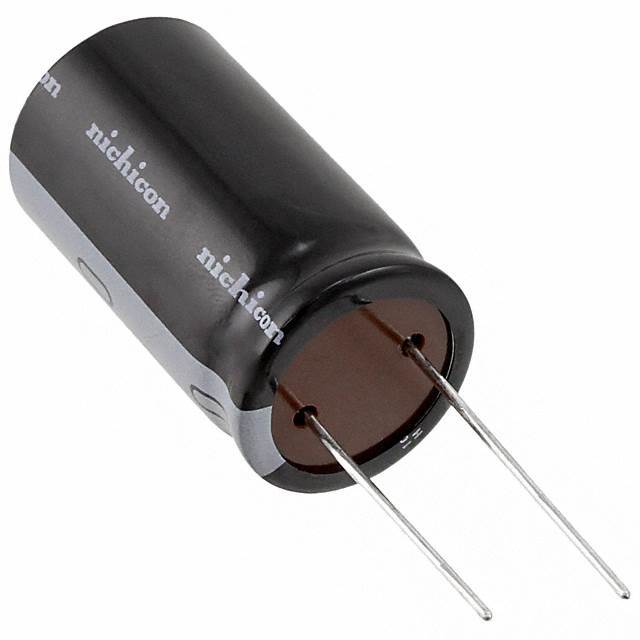

UVY2D471MRD
- Part Number:
- UVY2D471MRD
- Výrobce:
- Nichicon
- Popis:
- CAP ALUM 470UF 20% 200V RADIAL
- Stav volného vedení / RoHS:
- Bez olova / V souladu RoHS
- dostupné množství:
- 16548 Pieces
- Datový list:
- 1.UVY2D471MRD.pdf2.UVY2D471MRD.pdf
Úvod
BYCHIPS je distribuční odrůda pro UVY2D471MRD, máme zásoby pro okamžitou přepravu a také k dispozici pro dlouhodobé zásobování. Zašlete nám svůj plán nákupu UVY2D471MRD e-mailem vám poskytneme nejlepší cenu podle svého plánu.
Specifikace
| napìtí: | 200V |
|---|---|
| Tolerance: | ±20% |
| Povrchová montáž Land Velikost: | - |
| Velikost / Rozměry: | 0.866" Dia (22.00mm) |
| Série: | UVY |
| Ripple Current: | 925mA |
| Polarizace: | Polar |
| Obal: | Bulk |
| Paket / krabice: | Radial, Can |
| Ostatní jména: | 493-12492 UVY2D471MRD-ND |
| Provozní teplota: | -40°C ~ 105°C |
| Typ montáže: | Through Hole |
| Úroveň citlivosti na vlhkost (MSL): | 1 (Unlimited) |
| Výrobní standardní doba výroby: | 18 Weeks |
| Výrobní číslo výrobce: | UVY2D471MRD |
| Životnost @ Temp.: | 1000 Hrs @ 105°C |
| Rozestup vývodù: | 0.394" (10.00mm) |
| Impedance: | - |
| Výška - Sedící (Max): | 1.654" (42.00mm) |
| Rozšířený popis: | 470µF 200V Aluminum Capacitors Radial, Can 1000 Hrs @ 105°C |
| ESR (Equivalent Resistance Series): | - |
| Popis: | CAP ALUM 470UF 20% 200V RADIAL |
| kapacitní: | 470µF |
| Aplikace: | General Purpose |
| Email: | [email protected] |
