Koupit QXK2G105KTP s BYCHPS
Koupit se zárukou

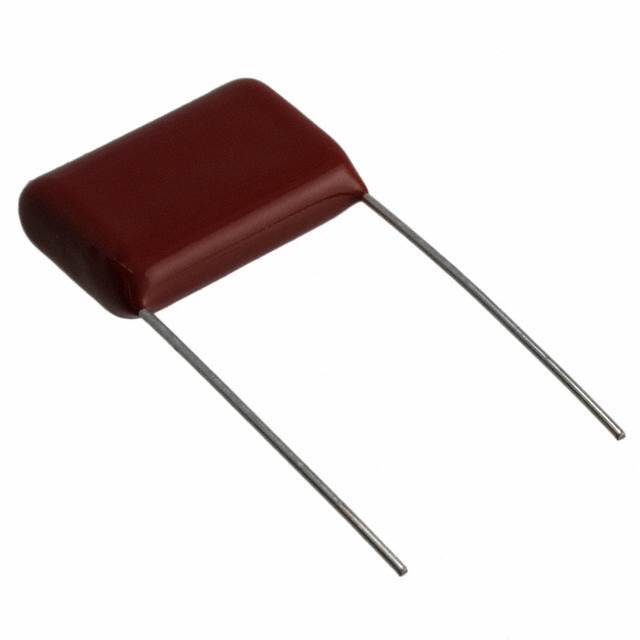

QXK2G105KTP
- Part Number:
- QXK2G105KTP
- Výrobce:
- Nichicon
- Popis:
- CAP FILM 1UF 10% 400VDC RADIAL
- Stav volného vedení / RoHS:
- Bez olova / V souladu RoHS
- dostupné množství:
- 20717 Pieces
Úvod
BYCHIPS je distribuční odrůda pro QXK2G105KTP, máme zásoby pro okamžitou přepravu a také k dispozici pro dlouhodobé zásobování. Zašlete nám svůj plán nákupu QXK2G105KTP e-mailem vám poskytneme nejlepší cenu podle svého plánu.
Specifikace
| Napìtí - DC: | 400V |
|---|---|
| Napìtí - AC: | 200V |
| Tolerance: | ±10% |
| Ukončení: | PC Pins |
| Velikost / Rozměry: | 1.004" L x 0.343" W (25.50mm x 8.70mm) |
| Série: | QXK |
| Obal: | Bulk |
| Paket / krabice: | Radial |
| Ostatní jména: | 493-3540 |
| Provozní teplota: | -40°C ~ 105°C |
| Typ montáže: | Through Hole |
| Úroveň citlivosti na vlhkost (MSL): | 1 (Unlimited) |
| Výrobní standardní doba výroby: | 18 Weeks |
| Výrobní číslo výrobce: | QXK2G105KTP |
| Rozestup vývodù: | 0.886" (22.50mm) |
| Výška - Sedící (Max): | 0.732" (18.60mm) |
| Funkce: | - |
| Rozšířený popis: | 1µF ±10% Film Capacitor 200V 400V Polyester, Metallized Radial |
| ESR (Equivalent Resistance Series): | - |
| dielektrikum Materiál: | Polyester, Metallized |
| Popis: | CAP FILM 1UF 10% 400VDC RADIAL |
| kapacitní: | 1µF |
| Aplikace: | General Purpose |
| Email: | [email protected] |
Související díly pro QXK2G105KTP
| Obraz | Part Number | Výrobci | Popis | Pohled |
|---|---|---|---|---|
 |
QXK2G105KTPTZH | Nichicon | CAP FILM 1UF 10% 400VDC RADIAL | Dotaz |
 |
QXK2G103KTP | Nichicon | CAP FILM 10000PF 10% 400VDC RAD | Dotaz |
 |
QXK2G154KTPTZH | Nichicon | CAP FILM 0.15UF 10% 400VDC RAD | Dotaz |
 |
QXK2G683KTP | Nichicon | CAP FILM 0.068UF 10% 400VDC RAD | Dotaz |
 |
QXK2G104KTP | Nichicon | CAP FILM 0.1UF 10% 400VDC RADIAL | Dotaz |
 |
QXK2G684KTPTZH | Nichicon | CAP FILM 0.68UF 10% 400VDC RAD | Dotaz |
 |
QXK2G153KTP | Nichicon | CAP FILM 0.015UF 10% 400VDC RAD | Dotaz |
 |
QXK2G223KTPTZH | Nichicon | CAP FILM 0.022UF 10% 400VDC RAD | Dotaz |
 |
QXK2G683KTPTZH | Nichicon | CAP FILM 0.068UF 10% 400VDC RAD | Dotaz |
 |
QXK2G104KTPTZH | Nichicon | CAP FILM 0.1UF 10% 400VDC RADIAL | Dotaz |
 |
QXK2G333KTPTZH | Nichicon | CAP FILM 0.033UF 10% 400VDC RAD | Dotaz |
 |
QXK2G155KTP | Nichicon | CAP FILM 1.5UF 10% 400VDC RADIAL | Dotaz |
 |
QXK2G154KTP | Nichicon | CAP FILM 0.15UF 10% 400VDC RAD | Dotaz |
 |
QXK2G155KTPTZH | Nichicon | CAP FILM 1.5UF 10% 400VDC RADIAL | Dotaz |
