Koupit GP2M002A065HG s BYCHPS
Koupit se zárukou

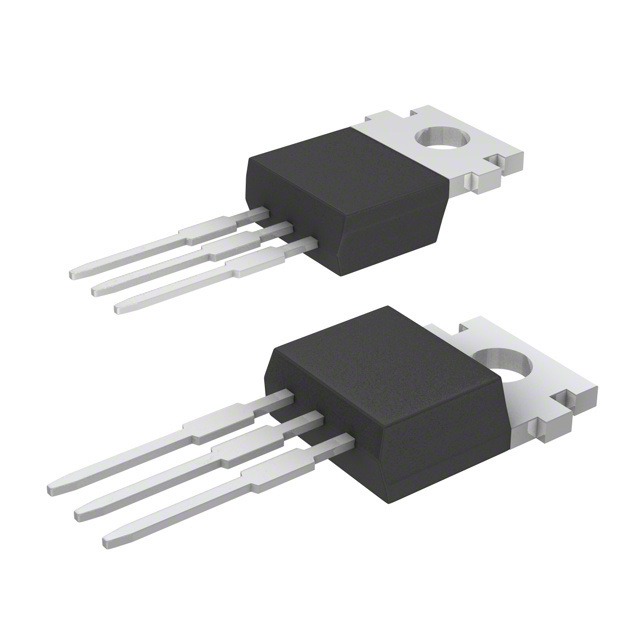

GP2M002A065HG
- Part Number:
- GP2M002A065HG
- Výrobce:
- Global Power Technologies Group
- Popis:
- MOSFET N-CH 650V 1.8A TO220
- Stav volného vedení / RoHS:
- Bez olova / V souladu RoHS
- dostupné množství:
- 16874 Pieces
- Datový list:
- GP2M002A065HG.pdf
Úvod
BYCHIPS je distribuční odrůda pro GP2M002A065HG, máme zásoby pro okamžitou přepravu a také k dispozici pro dlouhodobé zásobování. Zašlete nám svůj plán nákupu GP2M002A065HG e-mailem vám poskytneme nejlepší cenu podle svého plánu.
Specifikace
| Vgs (th) (max) 'Id: | 5V @ 250µA |
|---|---|
| Technika: | MOSFET (Metal Oxide) |
| Dodavatel zařízení Package: | TO-220 |
| Série: | - |
| RDS On (Max) @ Id, Vgs: | 4.6 Ohm @ 900mA, 10V |
| Ztráta energie (Max): | 52W (Tc) |
| Obal: | Tape & Reel (TR) |
| Paket / krabice: | TO-220-3 |
| Provozní teplota: | -55°C ~ 150°C (TJ) |
| Typ montáže: | Through Hole |
| Úroveň citlivosti na vlhkost (MSL): | 1 (Unlimited) |
| Výrobní číslo výrobce: | GP2M002A065HG |
| Vstupní kapacita (Ciss) (Max) @ Vds: | 353pF @ 25V |
| Nabíjení brány (Qg) (Max) @ Vgs: | 8.5nC @ 10V |
| Typ FET: | N-Channel |
| FET Feature: | - |
| Rozšířený popis: | N-Channel 650V 1.8A (Tc) 52W (Tc) Through Hole TO-220 |
| Drain na zdroj napětí (Vdss): | 650V |
| Popis: | MOSFET N-CH 650V 1.8A TO220 |
| Proud - kontinuální odtok (Id) @ 25 ° C: | 1.8A (Tc) |
| Email: | [email protected] |
Související díly pro GP2M002A065HG
| Obraz | Part Number | Výrobci | Popis | Pohled |
|---|---|---|---|---|
 |
GP2M002A065CG | Global Power Technologies Group | MOSFET N-CH 650V 1.8A DPAK | Dotaz |
 |
GP2M002A060FG | Global Power Technologies Group | MOSFET N-CH 600V 2A TO220F | Dotaz |
 |
GP2M002A065PG | Global Power Technologies Group | MOSFET N-CH 650V 1.8A IPAK | Dotaz |
 |
GP2M002A060HG | Global Power Technologies Group | MOSFET N-CH 600V 2A TO220 | Dotaz |
|
GP2M002A060CG | Global Power Technologies Group | MOSFET N-CH 600V 2A DPAK | Dotaz |
|
GP2M002A065FG | Global Power Technologies Group | MOSFET N-CH 650V 1.8A TO220F | Dotaz |
|
GP2M002A060PG | Global Power Technologies Group | MOSFET N-CH 600V 2A | Dotaz |
