Koupit ECE-P2WP122HX s BYCHPS
Koupit se zárukou

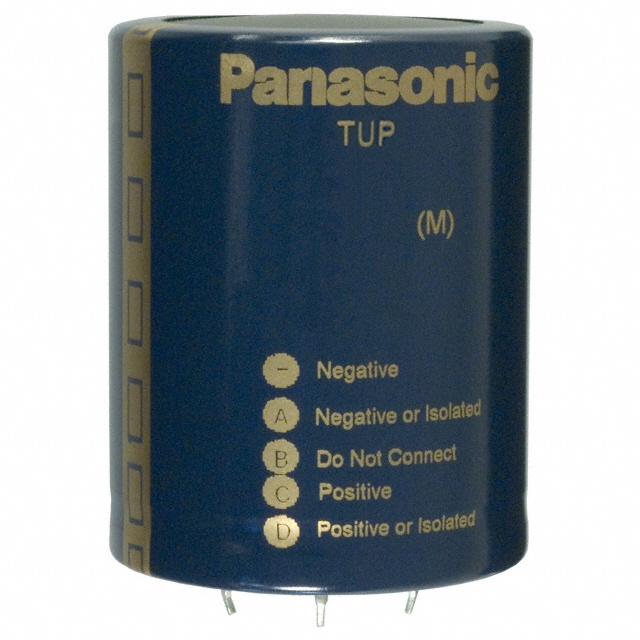

ECE-P2WP122HX
- Part Number:
- ECE-P2WP122HX
- Výrobce:
- Panasonic
- Popis:
- CAP ALUM 1200UF 20% 450V SNAP
- Stav volného vedení / RoHS:
- Bez olova / V souladu RoHS
- dostupné množství:
- 19731 Pieces
- Datový list:
- ECE-P2WP122HX.pdf
Úvod
BYCHIPS je distribuční odrůda pro ECE-P2WP122HX, máme zásoby pro okamžitou přepravu a také k dispozici pro dlouhodobé zásobování. Zašlete nám svůj plán nákupu ECE-P2WP122HX e-mailem vám poskytneme nejlepší cenu podle svého plánu.
Specifikace
| napìtí: | 450V |
|---|---|
| Tolerance: | ±20% |
| Povrchová montáž Land Velikost: | - |
| Velikost / Rozměry: | 1.969" Dia (50.00mm) |
| Série: | T-UP |
| Ripple Current: | 5.43A @ 120Hz |
| Polarizace: | Polar |
| Obal: | Bulk |
| Paket / krabice: | Radial, Can - Snap-In - 5 Lead |
| Ostatní jména: | ECEP2WP122HX P13310 |
| Provozní teplota: | -25°C ~ 85°C |
| Typ montáže: | Through Hole |
| Úroveň citlivosti na vlhkost (MSL): | 1 (Unlimited) |
| Výrobní číslo výrobce: | ECE-P2WP122HX |
| Životnost @ Temp.: | 3000 Hrs @ 85°C |
| Rozestup vývodù: | 0.984" (25.00mm) |
| Impedance: | - |
| Výška - Sedící (Max): | 2.480" (63.00mm) |
| Rozšířený popis: | 1200µF 450V Aluminum Capacitors Radial, Can - Snap-In - 5 Lead 180 mOhm @ 120Hz 3000 Hrs @ 85°C |
| ESR (Equivalent Resistance Series): | 180 mOhm @ 120Hz |
| Popis: | CAP ALUM 1200UF 20% 450V SNAP |
| kapacitní: | 1200µF |
| Aplikace: | General Purpose |
| Email: | [email protected] |
