Koupit APAN314H s BYCHPS
Koupit se zárukou
APAN314H
- Part Number:
- APAN314H
- Výrobce:
- Panasonic
- Popis:
- RELAY PWR PCB SPST 5A 4.5V
- Stav volného vedení / RoHS:
- Bez olova / V souladu RoHS
- dostupné množství:
- 17163 Pieces
- Datový list:
- APAN314H.pdf
Úvod
BYCHIPS je distribuční odrůda pro APAN314H, máme zásoby pro okamžitou přepravu a také k dispozici pro dlouhodobé zásobování. Zašlete nám svůj plán nákupu APAN314H e-mailem vám poskytneme nejlepší cenu podle svého plánu.
Specifikace
| Zapnout napìtí (Max): | 3.15 VDC |
|---|---|
| Vypnout napìtí (Min): | 0.225 VDC |
| styl koncovky: | PC Pin |
| spínací napětí: | 250VAC, 110VDC - Max |
| Série: | PA-N |
| Doba uvolnění: | 5ms |
| Typ relé: | General Purpose |
| Obal: | Tube |
| Ostatní jména: | 255-5323-5 |
| Provozní teplota: | -40°C ~ 90°C |
| vypínací čas: | 10ms |
| Typ montáže: | Through Hole |
| Výrobní standardní doba výroby: | 16 Weeks |
| Výrobní číslo výrobce: | APAN314H |
| Funkce: | Sealed |
| Rozšířený popis: | General Purpose Relay SPST-NO (1 Form A) 4.5VDC Coil Through Hole |
| Popis: | RELAY PWR PCB SPST 5A 4.5V |
| Kontakt Rating (aktuální): | 5A |
| Materiál kontaktu: | Silver Nickel (AgNi), Gold (Au) |
| Kontaktní formulář: | SPST-NO (1 Form A) |
| Coil Voltage: | 4.5VDC |
| Typ cívky: | Non Latching |
| Odpor cívky: | 184 Ohms |
| Coil Power: | 110 mW |
| Coil Current: | 24.4mA |
| Email: | [email protected] |
Související díly pro APAN314H
| Obraz | Part Number | Výrobci | Popis | Pohled |
|---|---|---|---|---|
 |
APAN3112 | Panasonic Electric Works | RELAY PWR PCB SPST 5A 12V | Dotaz |
 |
G5CA-1A-TP-E DC24 | Omron Electronics Inc-EMC Div | RELAY GEN PURPOSE SPST 15A 24V | Dotaz |
 |
T9AS1H22-24 | TE Connectivity Potter & Brumfield Relays | RELAY GEN PURP | Dotaz |
|
APAN3106 | Panasonic Electric Works | RELAY PWR PCB SPST 5A 6V | Dotaz |
|

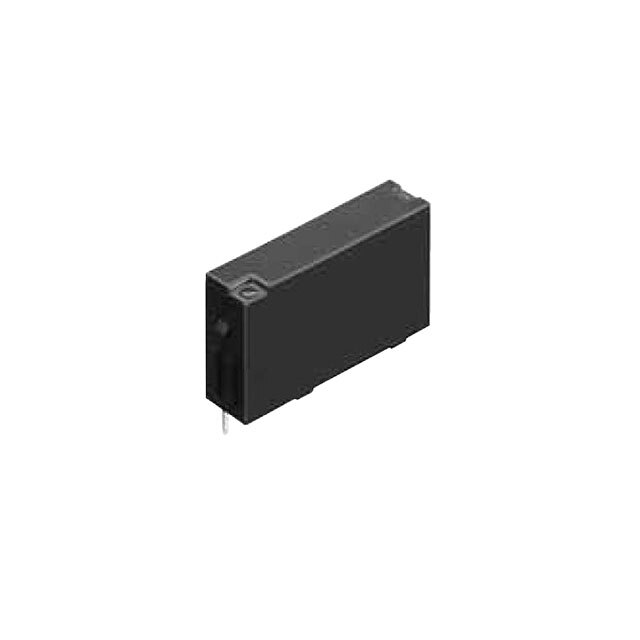

APAN3103 | Panasonic Electric Works | RELAY PWR PCB SPST 5A 3V | Dotaz |
|
