Koupit UVK1V332MHD s BYCHPS
Koupit se zárukou
UVK1V332MHD
- Part Number:
- UVK1V332MHD
- Výrobce:
- Nichicon
- Popis:

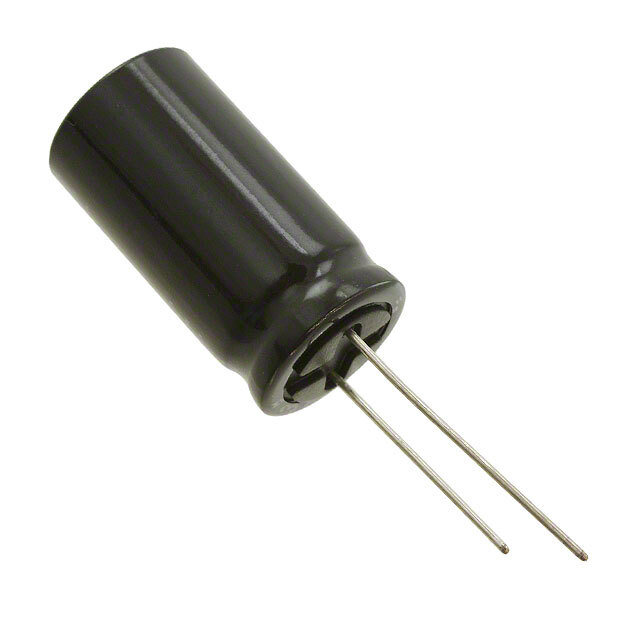

- CAP ALUM 3300UF 20% 35V RADIAL
- Stav volného vedení / RoHS:
- Bez olova / V souladu RoHS
- dostupné množství:
- 18944 Pieces
- Datový list:
- 1.UVK1V332MHD.pdf2.UVK1V332MHD.pdf
Úvod
BYCHIPS je distribuční odrůda pro UVK1V332MHD, máme zásoby pro okamžitou přepravu a také k dispozici pro dlouhodobé zásobování. Zašlete nám svůj plán nákupu UVK1V332MHD e-mailem vám poskytneme nejlepší cenu podle svého plánu.
Specifikace
| napìtí: | 35V |
|---|---|
| Tolerance: | ±20% |
| Povrchová montáž Land Velikost: | - |
| Velikost / Rozměry: | 0.630" Dia (16.00mm) |
| Série: | UVK |
| Ripple Current: | 2.1A |
| Polarizace: | Polar |
| Obal: | Bulk |
| Paket / krabice: | Radial, Can |
| Ostatní jména: | 493-6065 UVK1V332MHD-ND |
| Provozní teplota: | -40°C ~ 85°C |
| Typ montáže: | Through Hole |
| Úroveň citlivosti na vlhkost (MSL): | 1 (Unlimited) |
| Výrobní standardní doba výroby: | 18 Weeks |
| Výrobní číslo výrobce: | UVK1V332MHD |
| Životnost @ Temp.: | 2000 Hrs @ 85°C |
| Rozestup vývodù: | 0.295" (7.50mm) |
| Impedance: | - |
| Výška - Sedící (Max): | 1.319" (33.50mm) |
| Rozšířený popis: | 3300µF 35V Aluminum Capacitors Radial, Can 2000 Hrs @ 85°C |
| ESR (Equivalent Resistance Series): | - |
| Popis: | CAP ALUM 3300UF 20% 35V RADIAL |
| kapacitní: | 3300µF |
| Aplikace: | General Purpose |
| Email: | [email protected] |
