Koupit UPJ1V152MHD s BYCHPS
Koupit se zárukou
UPJ1V152MHD
- Part Number:
- UPJ1V152MHD
- Výrobce:
- Nichicon
- Popis:

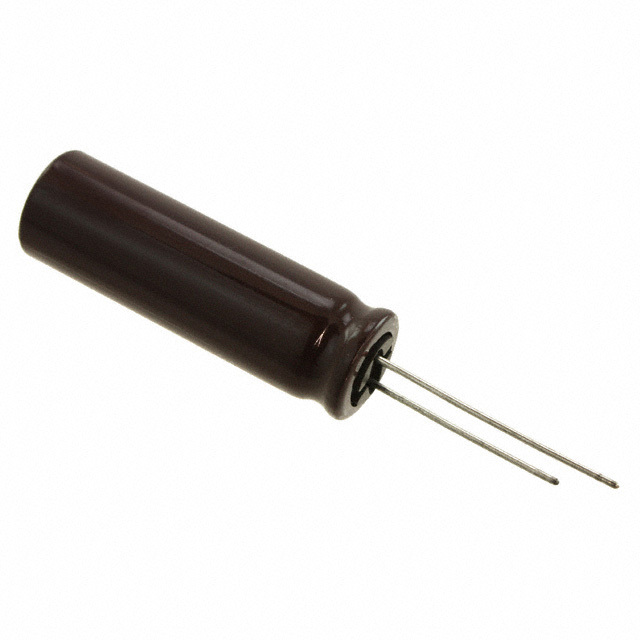

- CAP ALUM 1500UF 20% 35V RADIAL
- Stav volného vedení / RoHS:
- Bez olova / V souladu RoHS
- dostupné množství:
- 15545 Pieces
- Datový list:
- 1.UPJ1V152MHD.pdf2.UPJ1V152MHD.pdf
Úvod
BYCHIPS je distribuční odrůda pro UPJ1V152MHD, máme zásoby pro okamžitou přepravu a také k dispozici pro dlouhodobé zásobování. Zašlete nám svůj plán nákupu UPJ1V152MHD e-mailem vám poskytneme nejlepší cenu podle svého plánu.
Specifikace
| napìtí: | 35V |
|---|---|
| Tolerance: | ±20% |
| Povrchová montáž Land Velikost: | - |
| Velikost / Rozměry: | 0.492" Dia (12.50mm) |
| Série: | UPJ |
| Ripple Current: | 2.12A @ 120Hz |
| Polarizace: | Polar |
| Obal: | Bulk |
| Paket / krabice: | Radial, Can |
| Ostatní jména: | 493-5559 UPJ1V152MHD-ND |
| Provozní teplota: | -55°C ~ 105°C |
| Typ montáže: | Through Hole |
| Úroveň citlivosti na vlhkost (MSL): | 1 (Unlimited) |
| Výrobní standardní doba výroby: | 17 Weeks |
| Výrobní číslo výrobce: | UPJ1V152MHD |
| Životnost @ Temp.: | 5000 Hrs @ 105°C |
| Rozestup vývodù: | 0.197" (5.00mm) |
| Impedance: | 29 mOhm |
| Výška - Sedící (Max): | 1.634" (41.50mm) |
| Rozšířený popis: | 1500µF 35V Aluminum Capacitors Radial, Can 5000 Hrs @ 105°C |
| ESR (Equivalent Resistance Series): | - |
| Popis: | CAP ALUM 1500UF 20% 35V RADIAL |
| kapacitní: | 1500µF |
| Aplikace: | General Purpose |
| Email: | [email protected] |
