Koupit TLP3306(TP15,F s BYCHPS
Koupit se zárukou

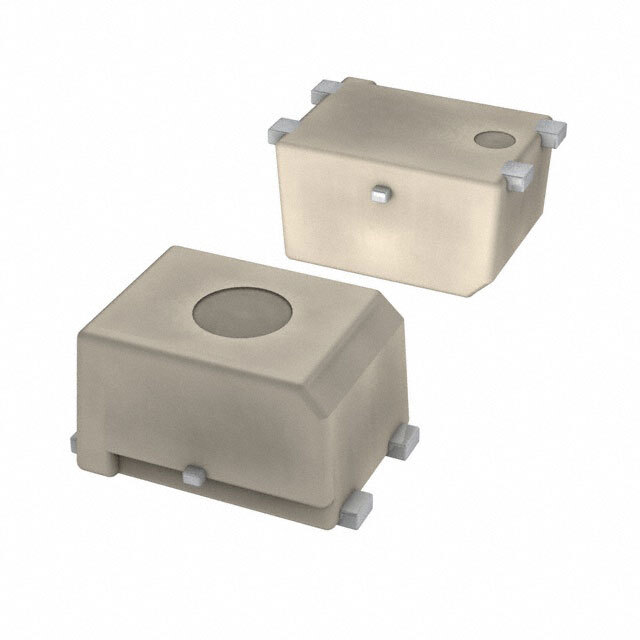

TLP3306(TP15,F
- Part Number:
- TLP3306(TP15,F
- Výrobce:
- Toshiba Semiconductor
- Popis:
- PHOTORELAY; LOW CR / LOW RON ; U
- Stav volného vedení / RoHS:
- Bez olova / V souladu RoHS
- dostupné množství:
- 19339 Pieces
- Datový list:
- TLP3306(TP15,F.pdf
Úvod
BYCHIPS je distribuční odrůda pro TLP3306(TP15,F, máme zásoby pro okamžitou přepravu a také k dispozici pro dlouhodobé zásobování. Zašlete nám svůj plán nákupu TLP3306(TP15,F e-mailem vám poskytneme nejlepší cenu podle svého plánu.
Specifikace
| Napětí - Load: | 0 ~ 75 V |
|---|---|
| Napětí - Vstup: | 1.15VDC |
| styl koncovky: | SMD (SMT) Tab |
| Dodavatel zařízení Package: | 4-USOP |
| Série: | TLP3306 |
| Typ relé: | Relay |
| Obal: | Tape & Reel (TR) |
| Paket / krabice: | 4-SMD (0.128", 3.25mm) |
| Typ výstupu: | AC, DC |
| Ostatní jména: | TLP3306(TP15,F(O TLP3306(TP15FTR |
| Rezistence při stavu (Max): | 1.5 Ohm |
| Typ montáže: | Surface Mount |
| Úroveň citlivosti na vlhkost (MSL): | 3 (168 Hours) |
| Výrobní standardní doba výroby: | 12 Weeks |
| Výrobní číslo výrobce: | TLP3306(TP15,F |
| load Current: | 400mA |
| Rozšířený popis: | Solid State Relay SPST-NO (1 Form A) 4-SMD (0.128", 3.25mm) |
| Popis: | PHOTORELAY; LOW CR / LOW RON ; U |
| Obvod: | SPST-NO (1 Form A) |
| Email: | [email protected] |
