Koupit NSS20501UW3T2G s BYCHPS
Koupit se zárukou

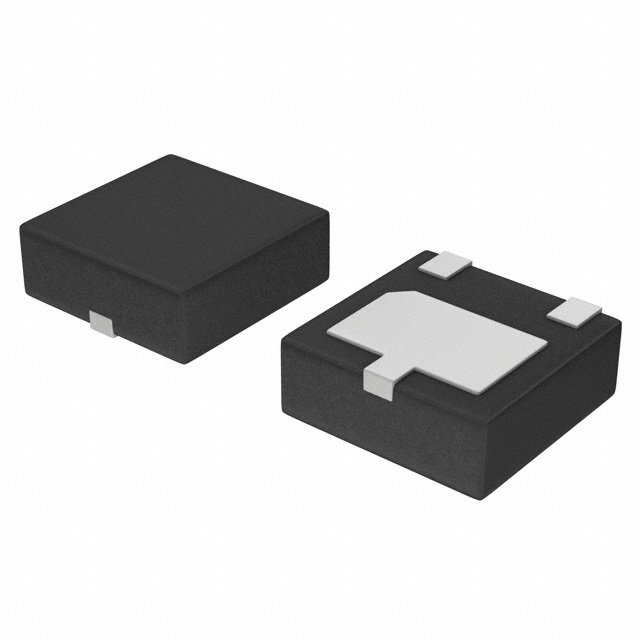

NSS20501UW3T2G
- Part Number:
- NSS20501UW3T2G
- Popis:
- TRANS NPN 20V 5A 3-WDFN
- Stav volného vedení / RoHS:
- Bez olova / V souladu RoHS
- dostupné množství:
- 14077 Pieces
- Datový list:
- NSS20501UW3T2G.pdf
Úvod
BYCHIPS je distribuční odrůda pro NSS20501UW3T2G, máme zásoby pro okamžitou přepravu a také k dispozici pro dlouhodobé zásobování. Zašlete nám svůj plán nákupu NSS20501UW3T2G e-mailem vám poskytneme nejlepší cenu podle svého plánu.
Specifikace
| Napětí - kolektoru emitoru Breakdown (Max): | 20V |
|---|---|
| VCE Saturation (Max) @ IB, IC: | 125mV @ 400mA, 4A |
| Transistor Type: | NPN |
| Dodavatel zařízení Package: | 3-WDFN (2x2) |
| Série: | - |
| Power - Max: | 875mW |
| Obal: | Tape & Reel (TR) |
| Paket / krabice: | 3-WDFN Exposed Pad |
| Ostatní jména: | NSS20501UW3T2GOSTR |
| Provozní teplota: | -55°C ~ 150°C (TJ) |
| Typ montáže: | Surface Mount |
| Úroveň citlivosti na vlhkost (MSL): | 1 (Unlimited) |
| Výrobní standardní doba výroby: | 2 Weeks |
| Výrobní číslo výrobce: | NSS20501UW3T2G |
| Frekvence - Přechod: | 150MHz |
| Rozšířený popis: | Bipolar (BJT) Transistor NPN 20V 5A 150MHz 875mW Surface Mount 3-WDFN (2x2) |
| Popis: | TRANS NPN 20V 5A 3-WDFN |
| DC Current Gain (hFE) (Min) @ Ic, Vce: | 200 @ 2A, 2V |
| Aktuální - sběratel Cutoff (Max): | 100nA (ICBO) |
| Proud - Collector (Ic) (Max): | 5A |
| Email: | [email protected] |
