HGT1S20N60C3S9A
- Part Number:
- HGT1S20N60C3S9A
- Výrobce:
- Fairchild/ON Semiconductor
- Popis:
- IGBT 600V 45A 164W TO263AB
- Stav volného vedení / RoHS:
- Bez olova / V souladu RoHS
- dostupné množství:
- 13026 Pieces
- Datový list:
- HGT1S20N60C3S9A.pdf
Úvod
BYCHIPS je distribuční odrůda pro HGT1S20N60C3S9A, máme zásoby pro okamžitou přepravu a také k dispozici pro dlouhodobé zásobování. Zašlete nám svůj plán nákupu HGT1S20N60C3S9A e-mailem vám poskytneme nejlepší cenu podle svého plánu.
Specifikace
| Napětí - kolektoru emitoru Breakdown (Max): | 600V |
|---|---|
| VCE (o) (Max) @ VGE, Ic: | 1.8V @ 15V, 20A |
| Zkušební podmínky: | 480V, 20A, 10 Ohm, 15V |
| Td (zapnuto / vypnuto) při 25 ° C: | 28ns/151ns |
| přepínání energie: | 295µJ (on), 500µJ (off) |
| Dodavatel zařízení Package: | TO-263AB |
| Série: | - |
| Power - Max: | 164W |
| Obal: | Tape & Reel (TR) |

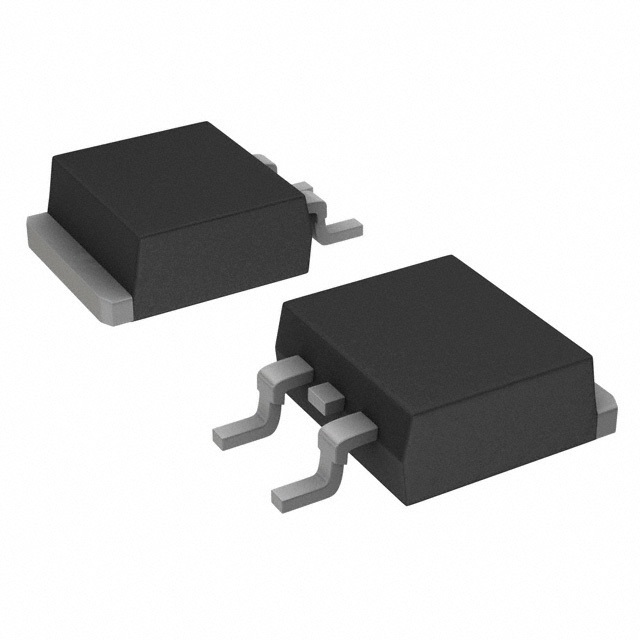

| Paket / krabice: | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Provozní teplota: | -55°C ~ 150°C (TJ) |
| Typ montáže: | Surface Mount |
| Úroveň citlivosti na vlhkost (MSL): | 1 (Unlimited) |
| Výrobní číslo výrobce: | HGT1S20N60C3S9A |
| Typ vstupu: | Standard |
| Typ IGBT: | - |
| Gate Charge: | 91nC |
| Rozšířený popis: | IGBT 600V 45A 164W Surface Mount TO-263AB |
| Popis: | IGBT 600V 45A 164W TO263AB |
| Aktuální - sběratel Pulsní (ICM): | 300A |
| Proud - Collector (Ic) (Max): | 45A |
| Email: | [email protected] |
Související díly pro HGT1S20N60C3S9A
| Obraz | Part Number | Výrobci | Popis | Pohled |
|---|---|---|---|---|
 |
HGT1S20N60A4S9A | Fairchild/ON Semiconductor | IGBT 600V 70A 290W TO263AB | Dotaz |
|
HGT1S7N60A4DS | Fairchild/ON Semiconductor | IGBT 600V 34A 125W TO263AB | Dotaz |
 |
HGT1S20N36G3VL | Fairchild/ON Semiconductor | IGBT 395V 37.7A 150W TO262AA | Dotaz |
|
HGT1S2N120CN | Fairchild/ON Semiconductor | IGBT 1200V 13A 104W I2PAK | Dotaz |
|
HGT1S7N60C3DS9A | Fairchild/ON Semiconductor | IGBT 600V 14A 60W TO263AB | Dotaz |
|
HGT1S20N35G3VLS | Fairchild/ON Semiconductor | IGBT 380V 20A 150W TO263AB | Dotaz |
|
HGT1S7N60C3DS | Fairchild/ON Semiconductor | IGBT 600V 14A 60W TO263AB | Dotaz |
|
HGT1S12N60A4S9A | Fairchild/ON Semiconductor | IGBT 600V 54A 167W TO263AB | Dotaz |
|
HGT1S3N60A4DS9A | Fairchild/ON Semiconductor | IGBT 600V 17A 70W D2PAK | Dotaz |
|
HGT1S10N120BNST | Fairchild/ON Semiconductor | IGBT 1200V 35A 298W TO263AB | Dotaz |
|
HGT1S10N120BNS | Fairchild/ON Semiconductor | IGBT 1200V 35A 298W TO263AB | Dotaz |
