Koupit FDMC7672S_F126 s BYCHPS
Koupit se zárukou

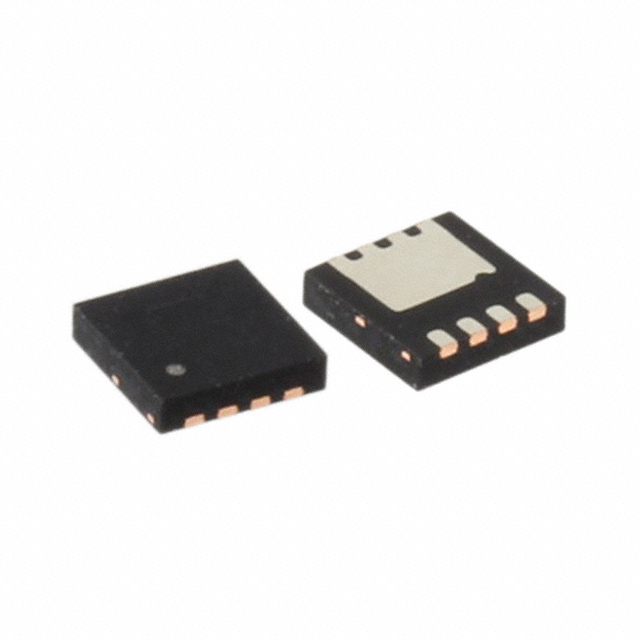

FDMC7672S_F126
- Part Number:
- FDMC7672S_F126
- Výrobce:
- Fairchild/ON Semiconductor
- Popis:
- MOSFET N-CH 30V
- Stav volného vedení / RoHS:
- Bez olova / V souladu RoHS
- dostupné množství:
- 18160 Pieces
- Datový list:
- FDMC7672S_F126.pdf
Úvod
BYCHIPS je distribuční odrůda pro FDMC7672S_F126, máme zásoby pro okamžitou přepravu a také k dispozici pro dlouhodobé zásobování. Zašlete nám svůj plán nákupu FDMC7672S_F126 e-mailem vám poskytneme nejlepší cenu podle svého plánu.
Specifikace
| Vgs (th) (max) 'Id: | 3V @ 1mA |
|---|---|
| Vgs (Max): | ±20V |
| Technika: | MOSFET (Metal Oxide) |
| Dodavatel zařízení Package: | 8-MLP (3.3x3.3) |
| Série: | PowerTrench®, SyncFET™ |
| RDS On (Max) @ Id, Vgs: | 6 mOhm @ 14.8A, 10V |
| Ztráta energie (Max): | 2.3W (Ta), 36W (Tc) |
| Obal: | Tape & Reel (TR) |
| Paket / krabice: | 8-PowerWDFN |
| Ostatní jména: | FDMC7672S_F126TR |
| Provozní teplota: | -55°C ~ 150°C (TJ) |
| Typ montáže: | Surface Mount |
| Úroveň citlivosti na vlhkost (MSL): | 1 (Unlimited) |
| Výrobní standardní doba výroby: | 12 Weeks |
| Výrobní číslo výrobce: | FDMC7672S_F126 |
| Vstupní kapacita (Ciss) (Max) @ Vds: | 2520pF @ 15V |
| Nabíjení brány (Qg) (Max) @ Vgs: | 42nC @ 10V |
| Typ FET: | N-Channel |
| FET Feature: | - |
| Rozšířený popis: | N-Channel 30V 14.8A (Ta) 2.3W (Ta), 36W (Tc) Surface Mount 8-MLP (3.3x3.3) |
| Napětí měniče (max. Zap. RDS, min. Zap. Zap.): | 4.5V, 10V |
| Drain na zdroj napětí (Vdss): | 30V |
| Popis: | MOSFET N-CH 30V |
| Proud - kontinuální odtok (Id) @ 25 ° C: | 14.8A (Ta) |
| Email: | [email protected] |
